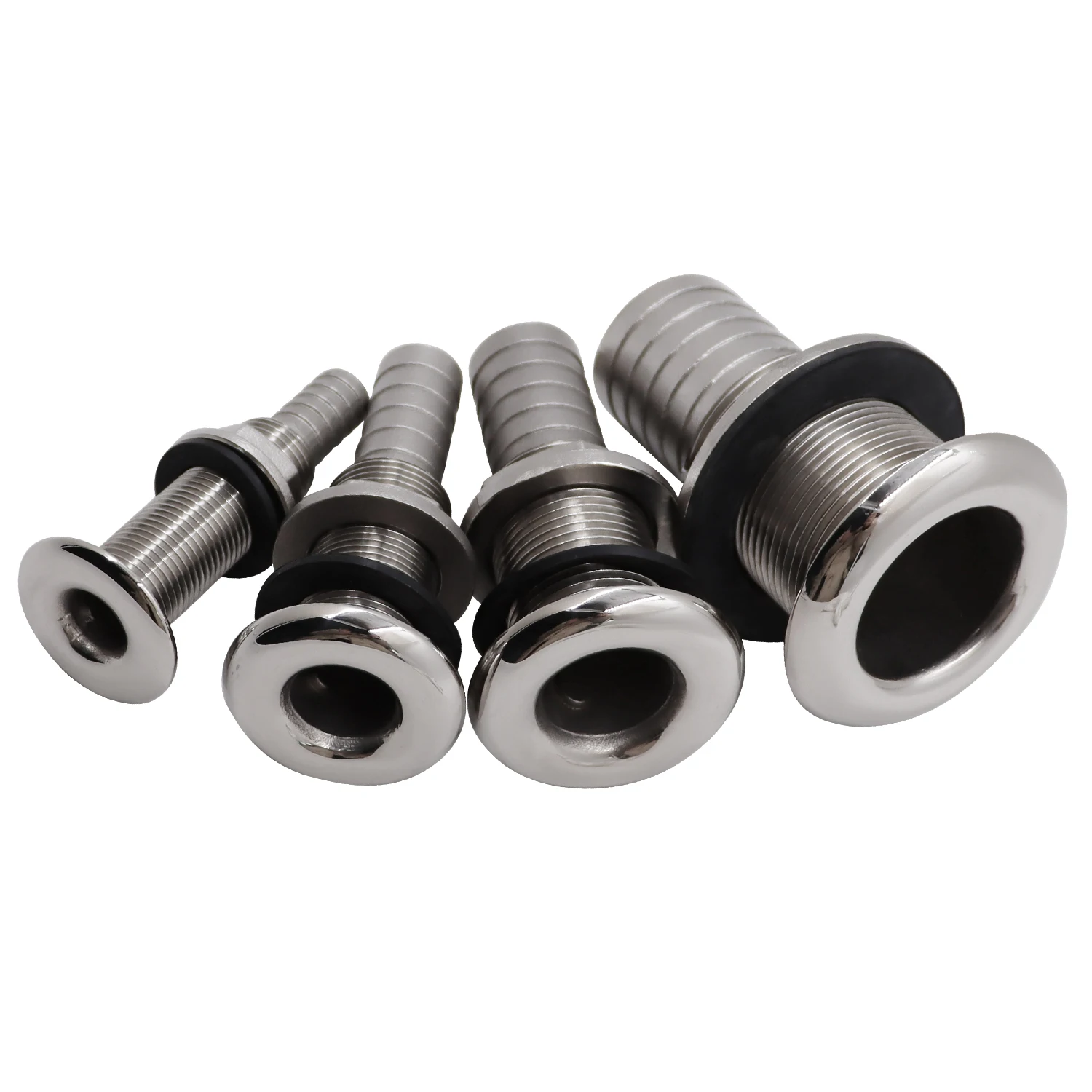

Barbed Extra Long Straight Thru-Hull Marine Stainless Steel 316 Boat Thru Drain Connector Fittings with Nut& 1/2",3/4",1",1-1/4"

Package Includes:

1 piece of Thru-Hull Fittings

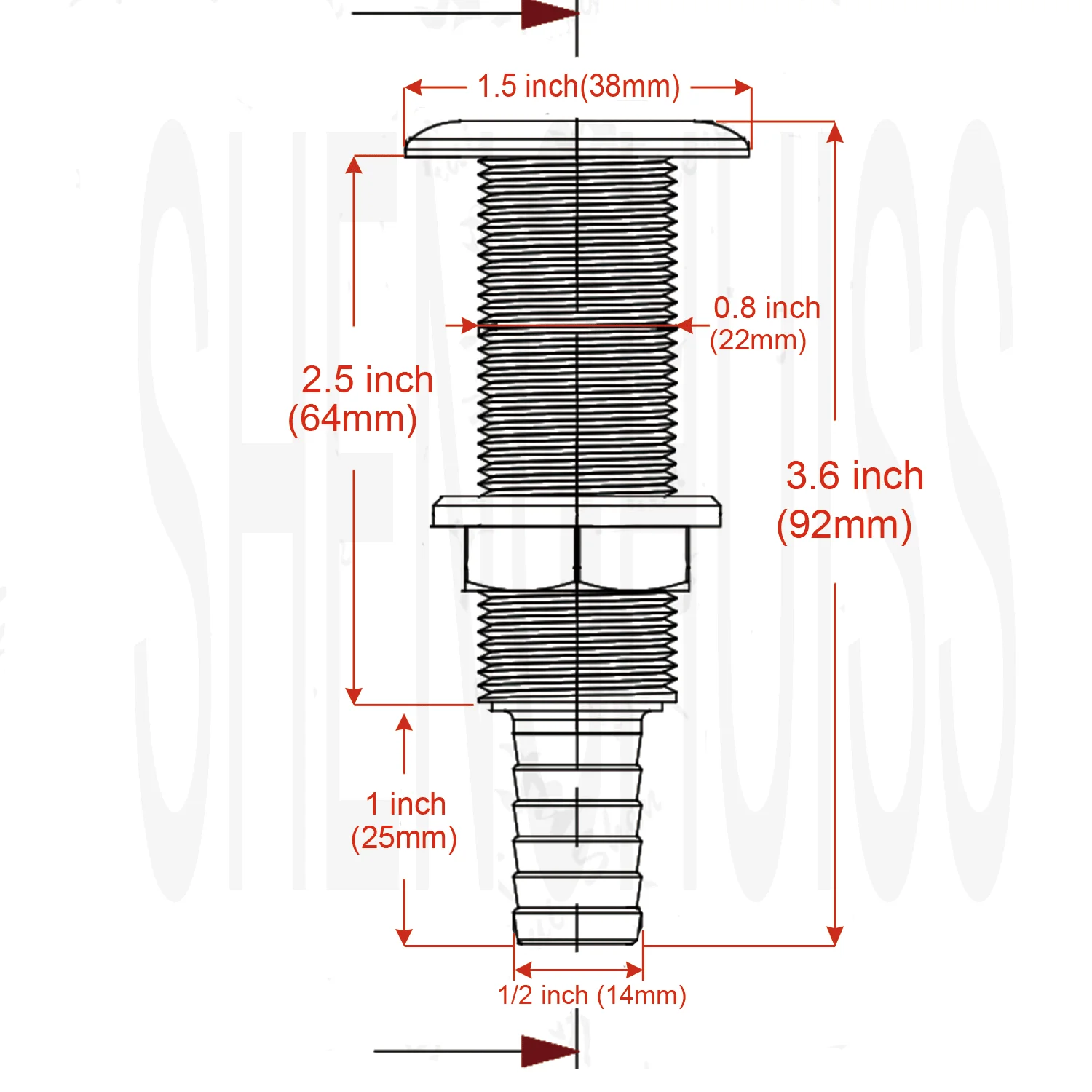

1/2" Barbed Long Straight Thru-Hull Fitting

Outside flange diameter: 1.5inch(38mm), Barb diameter: 25.4 mm / 1'', Thread Size: 0.8 inch(22mm) , Weight: 4.8 oz(136 g)

Material: Marine grade Stainless Steel 316, Surface: Mirror polished/High polish finish.Ultimate Corrosion Resistant.

Overall Length:3.6inch(92mm), Thread length:2.5inch(64mm), Barb length: 1inch(25mm),

3/4" Barbed Long Straight Thru-Hull Fitting

Overall Length: 4 inch (102mm), Thread length: 2.1 inch (53.5 mm), Barb length: 1.6 inch (41mm) , Outside flange diameter: 1.87 inch (47 mm), Barb diameter: 3/4'', Thread Size: 1 inch (26 mm) ,

Boat Thru Hull Fittings Material: Marine grade Stainless Steel 316, Surface: Mirror polished/High polish finish.Ultimate Corrosion Resistant.

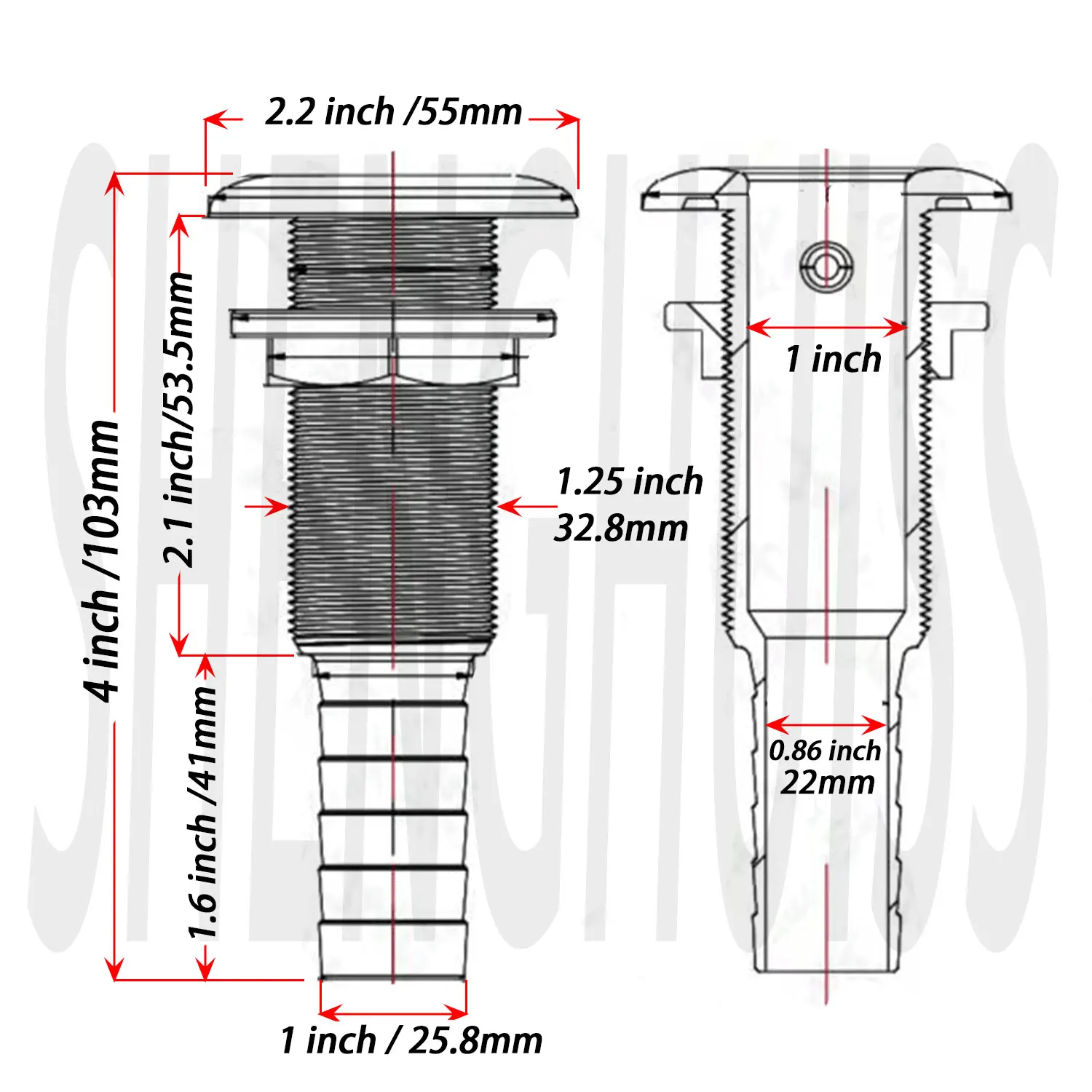

1" Barbed Long Straight Thru-Hull Fitting

Overall Length: 4 inch(103 mm), Thread length : 2.1 inch(53.5 mm), Barb length: 1.6 inch(41 mm), The Maximum installation thickness of deck is 1.6 inch.Outside flange diameter: 2.2 inch (55 mm), Barb diameter: 1'', Thread Size: 1.25 inch (32.8 mm)

Boat Thru Hull Fittings Material: Marine grade Stainless Steel 316, Surface: Mirror polished/High polish finish.Ultimate Corrosion Resistant.

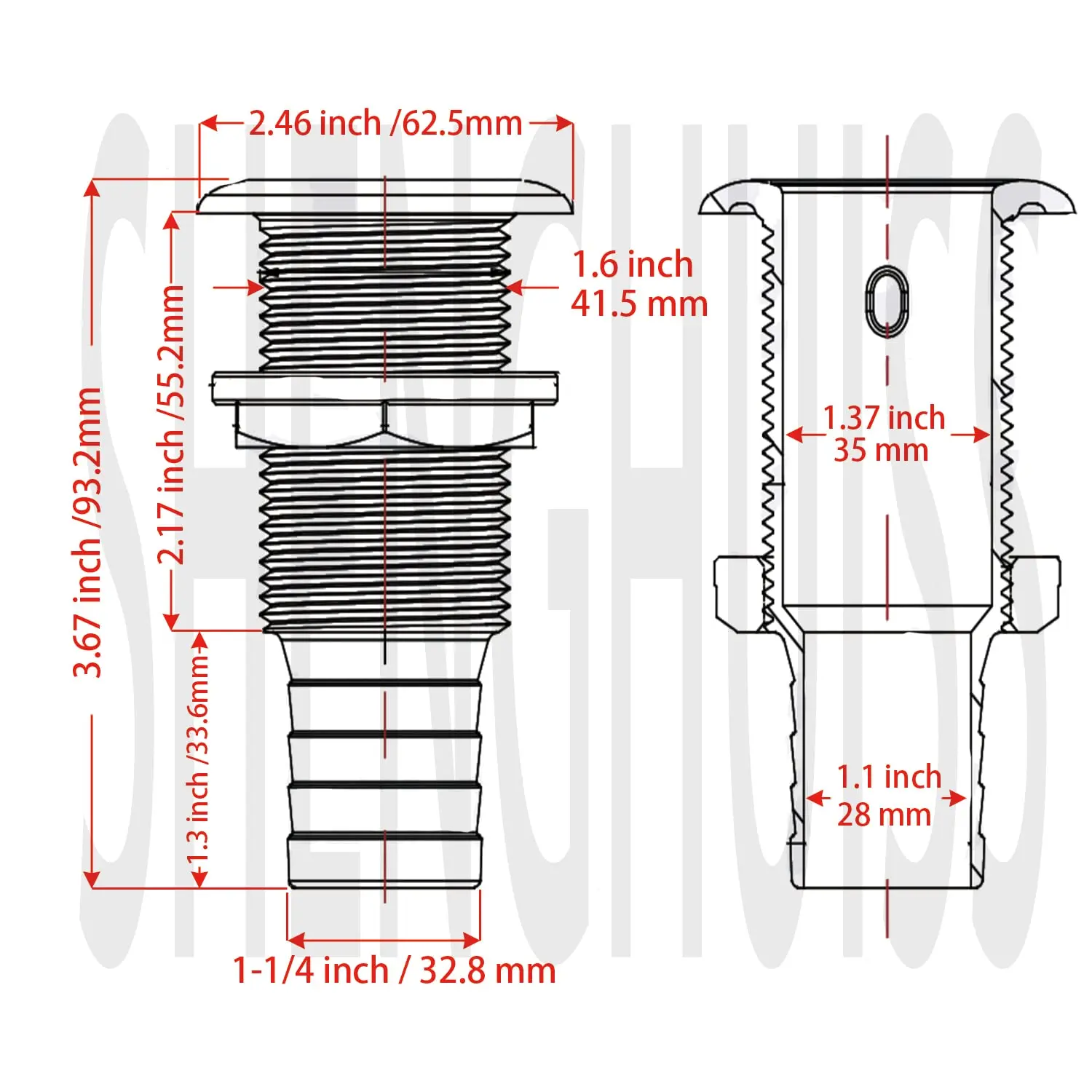

1-1/4" Barbed Long Straight Thru-Hull Fitting

Thru-Hull Fitting Overall Length:3.67 inch(93.2mm), Thread length:2.17 inch(55.2mm), Barb length: 1.3 inch(33.6mm).Outside flange diameter: 2.46 inch(38mm), Barb diameter: 1-1/4 inch (32.8mm), Thread Size: 1.6 inch(41.5mm) .

Boat Thru Hull Fittings Material: Marine grade Stainless Steel 316, Surface: Mirror polished/High polish finish.Ultimate Corrosion Resistant.
