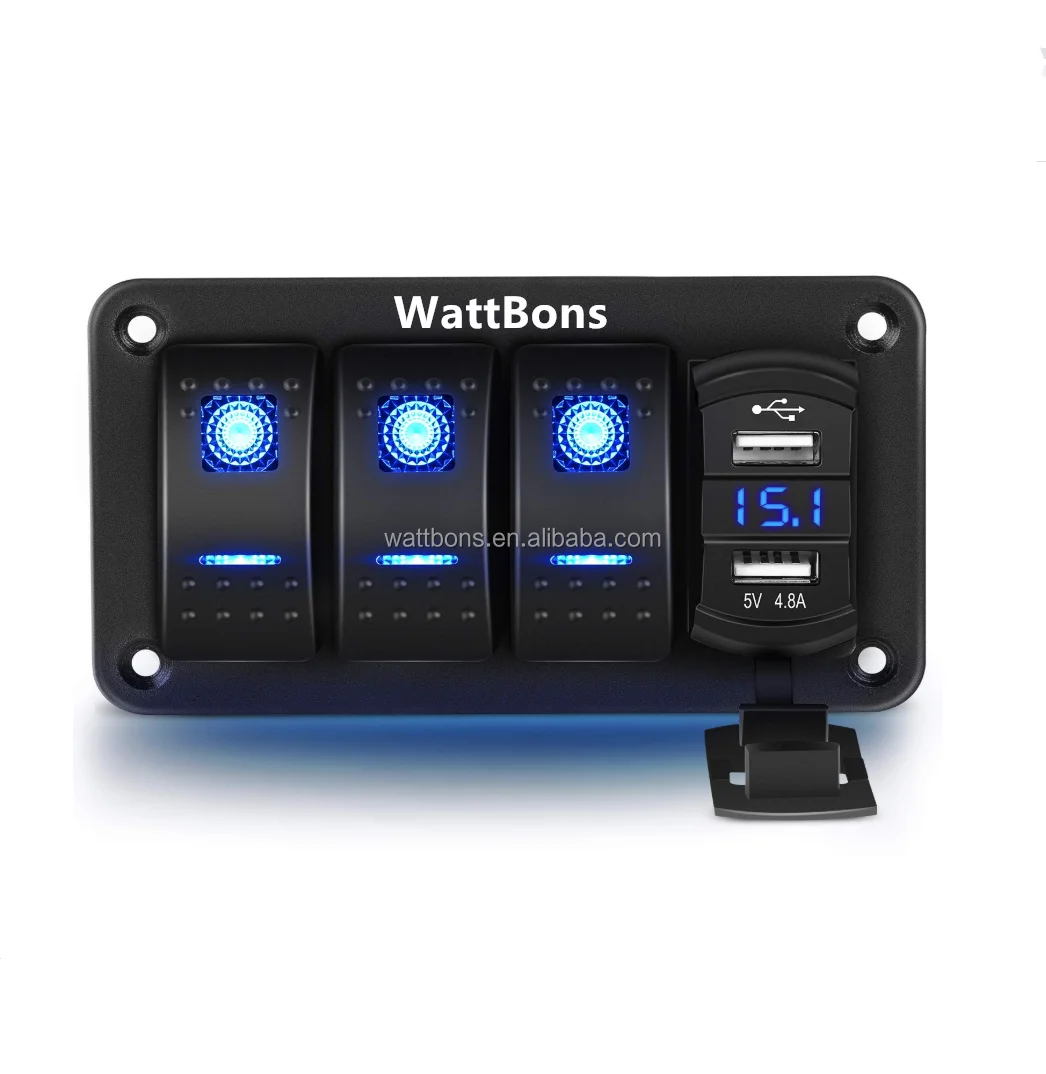

3 Gang Rocker Switch Board 12V 4.8A Dual USB Charger Truck Boat Power Adapter Marine Waterproof Switch Panel With LED Voltmeter
3 Gang Led Light Switch Dual USB Fast Charging
| Accessories | Black screw*4/Ordinary sticker*1 |
| Switch/car charging voltage | 12-24V |
| Overload protection | 12V 20A DC; 24V 10A DC |
| Charging output | 5V 3.1A |
| Max output without lamp socket | 15A |
| Working temperature | -25 ℃ to 80 ℃ |
| Protection class | IP65 |
| Voltmeter display range | 9-30V |
| NW/GW | 218g/272g |
| Package for 1 pcs | 12*10.8*11 CM |
| Package for 36 pcs | 56.5*26*57.5 CM |
WattBons 3 Gang Rocker Switch Panel with 4.8 Amp Dual USB Charger Voltmeter Waterproof 12V 24V DC Rocker Switch with Night Glow Stickers for Cars Trucks Boats RVs
Specification:
witch Type: Rocker Switch
Current Rating: 20 Amps, 10 Amps
Operating Voltage: 24Volts
Installation: Pre-wired
Material: Panel: Aluminum Switch: ABS+PC
Multi-function designed: this switch panel is integrated with 3 rocker switches and 4.8A dual USB charger with voltmeter. suitable for most 12v-24v dc cars, utvs,atvs, trucks, trailers, rvs, caravans, buses, marine boats, yachts etc.

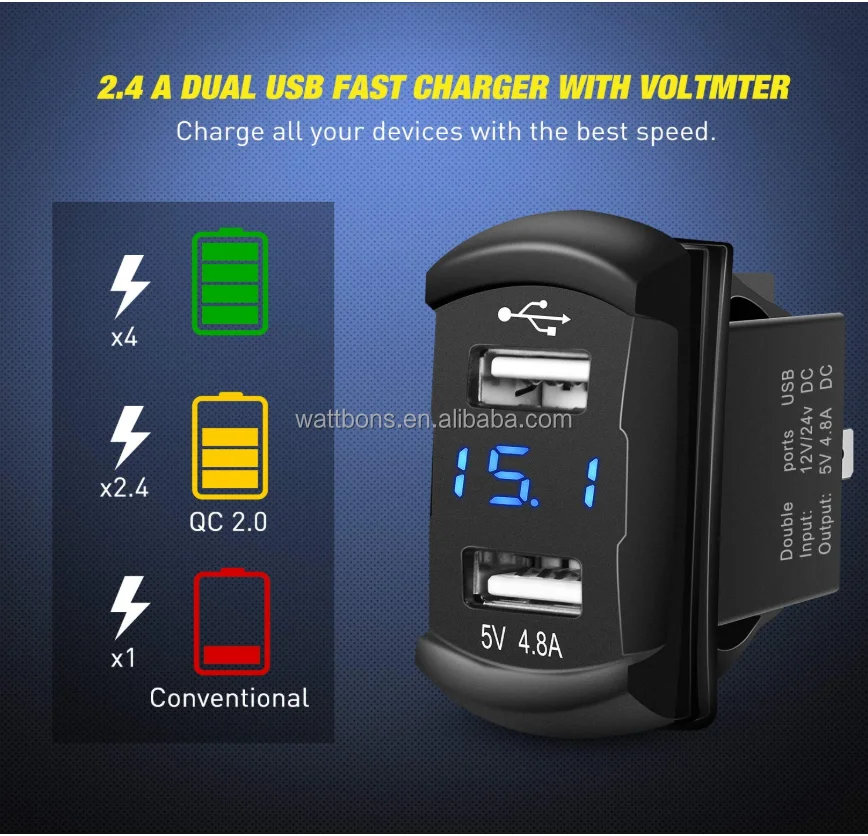

Efficient charge: dual USB charger enable you charge two devices simultaneously at full speed with 2.4a in each USB port. with a total power of 4.8A, it works for all usb-powered devices. makes the charger 40% faster than conventional chargers.
Led voltage display: the voltmeter is builted in the center of the usb charger, clearly shows the current readings of working volts, easily notice the voltage condition of the vehicles.
Quality assurance: the panel is made of strengthened aluminum and well-conductive pins,ensure long lasting durability highly optimized for general use and will give you a pleasant experience
Package Includes:
1 x Multi-functional 3 Gang switch panel with USB and Voltmeter
4 x Fixing screws
1 x DIY Sticker, 1x Night Glow Sticker
A Wiring Diagram
OEM and ODM:
Customzied Switch Panels Options
